久々の更新です。というのもこの作品を作製しようとした矢先にレーザー管が破損するトラブルに見舞われており、代替品を手に入れるまでネタがありませんでした。
I made a case designed for sub-display which is assembled iPad retina LCD and Abusemark's board.
http://abusemark.com/store/index.php?main_page=product_info&cPath=3&products_id=47

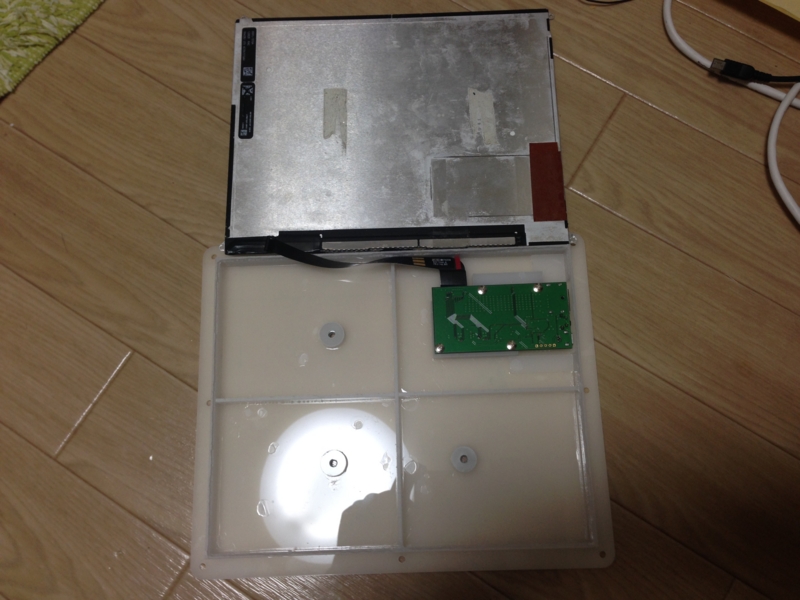

今回作製したものはアクリルを使ったケースです。中に入れるものはごく一部で人気のipadの液晶にDisplay Port変換基板をくっつけて作る液晶ディスプレイです。一番の売りはその高解像度、製品のサブディスプレイには無いretinaを活用出来る所、そして廉価な所にあります。以前3Dプリンターを活用して作製したことがあるのですが、お世辞にも見栄えが微妙な作品でした。
This box is made of acrylic plate, and has become a beautiful finish compared to those made by 3D printing.The main benefit is that the resolution is higher than the sub-display of common commercially available. Yet it can be produced at low cost.
だいたい、
パネル(LCD PANEL) 4500円(45$)
基板(LOGIC BOARD) 3500円(35$)
ケーブル(CABLE) 1000円(10$)
これと送料(shipping fee and other..)ぐらいで、10000円程度(with in 100$)に収まるようです。
Approximate...
LCD PANEL 45$
LOGIC BOARD 35$
and other's(DP CABLE and USB CABLE...)
You should be able to get in about 10,000 yen in total.
そこで、ネットで募った意見をもとに部品を設計しレーザー加工機を用いて作製することにしました。価格については、平板を積み上げるようなタイプではなく、フレーム部品を切り出して接着剤で固定することで使用するアクリルの量を減らすことにしました。同時に重さに関しても減らすことができました。
条件
①そこそこの低価格(low cost , up to 45$)
②基板は固定できること(logic board can be fasten by screw)
In order to design this case, I listened some opinion on the Internet.
1:low cost
2:logic board can be fasten by screw
3:That it can be fixed with screws of M4 in accordance with the standard of VESA75
I cut acrylic plate with my own laser cutter and can sell this case with only 45$(not include shipping fee).
I can recieve your payment via Paypal.
When you want to buy this case,please contact me
knob.create@gmail.com
このケースが欲しい方は4500円+送料にて制作を承ります。その際はknob.create@gmail.comまでご連絡お願いします。

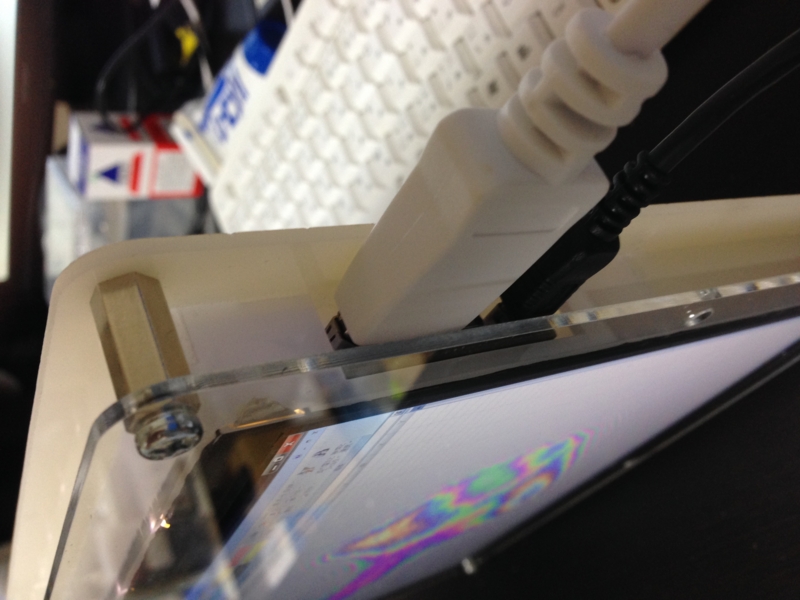

Using M4 nut for VESA75

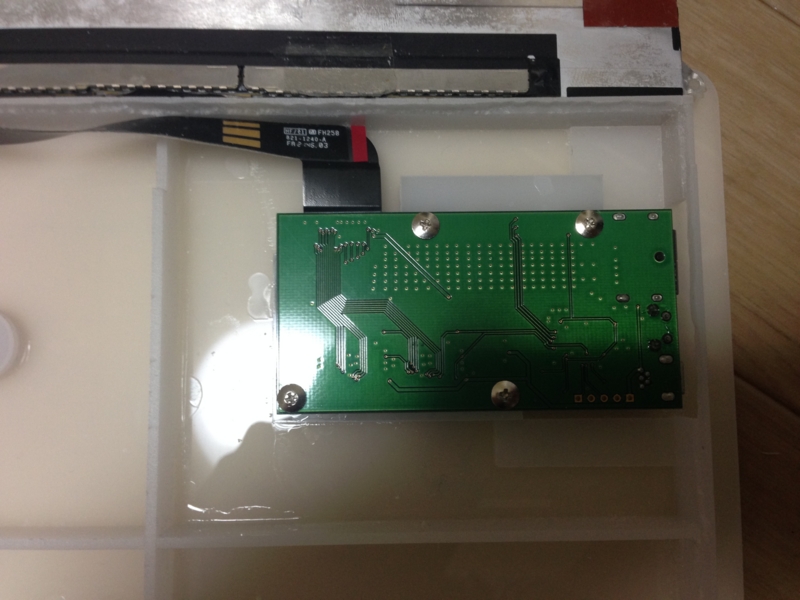

fix logic board with screw
high resolution QXGA (2048x1536 px) (264 ppi),
suit DP connector
